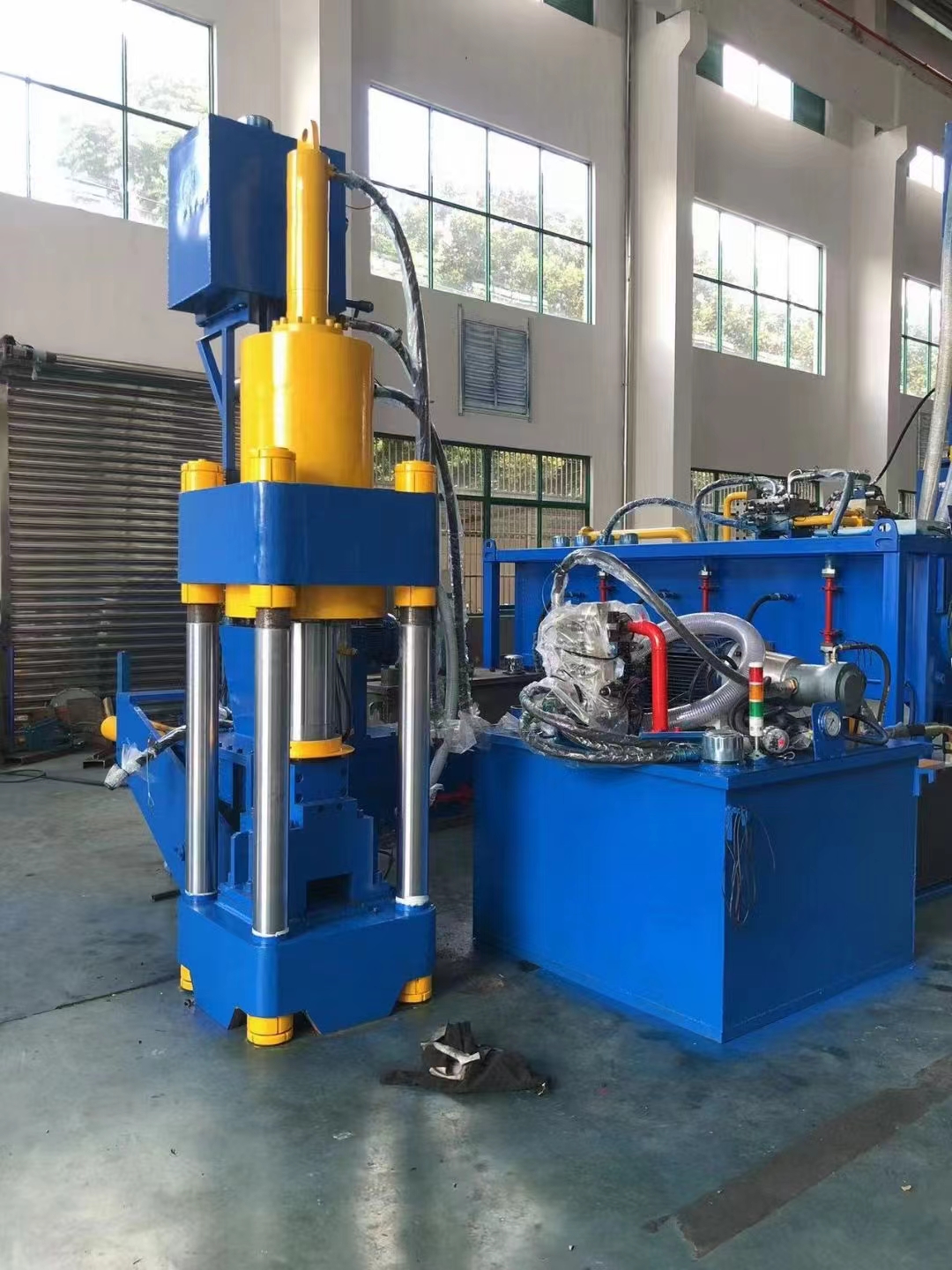

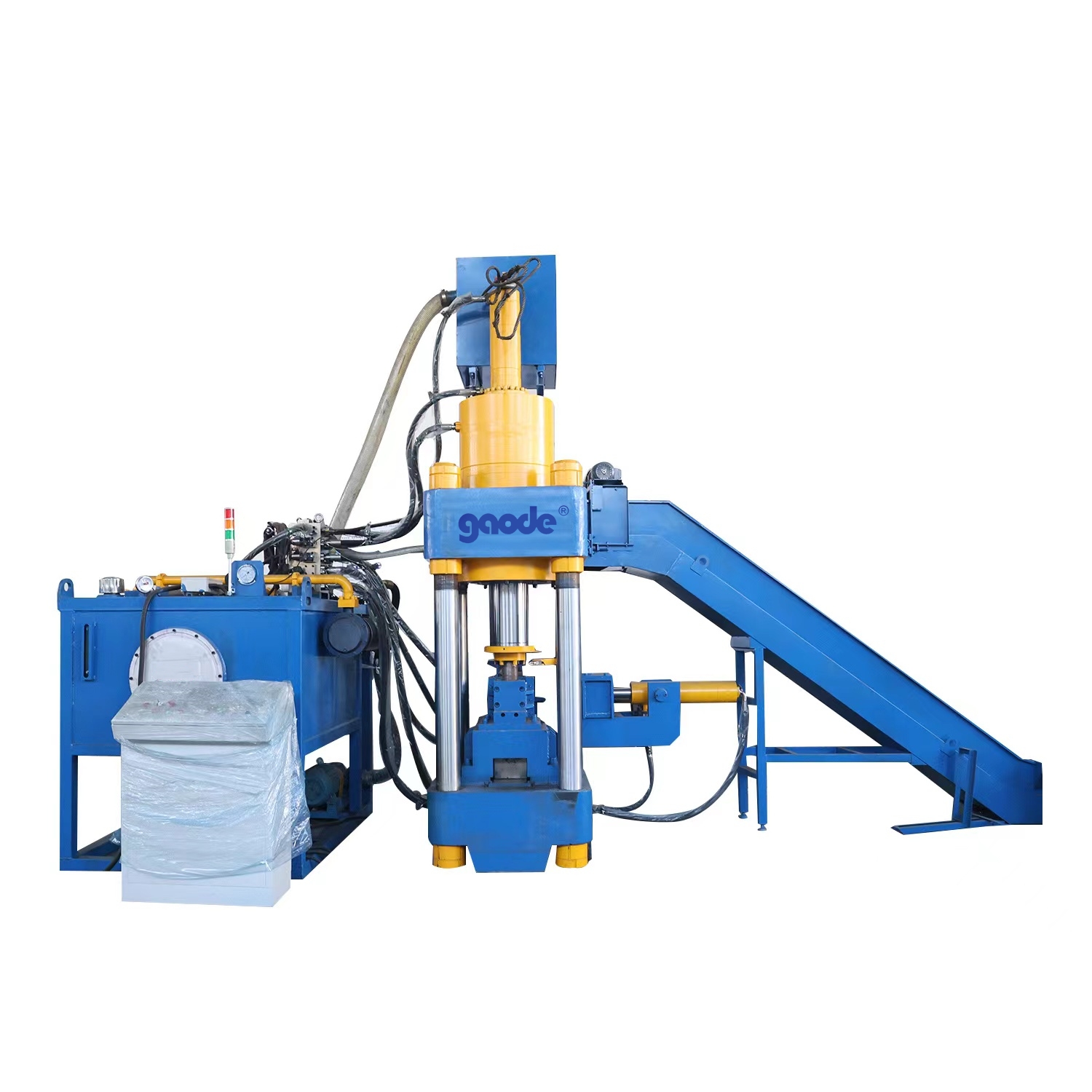

Briquetting Machines 屑饼机

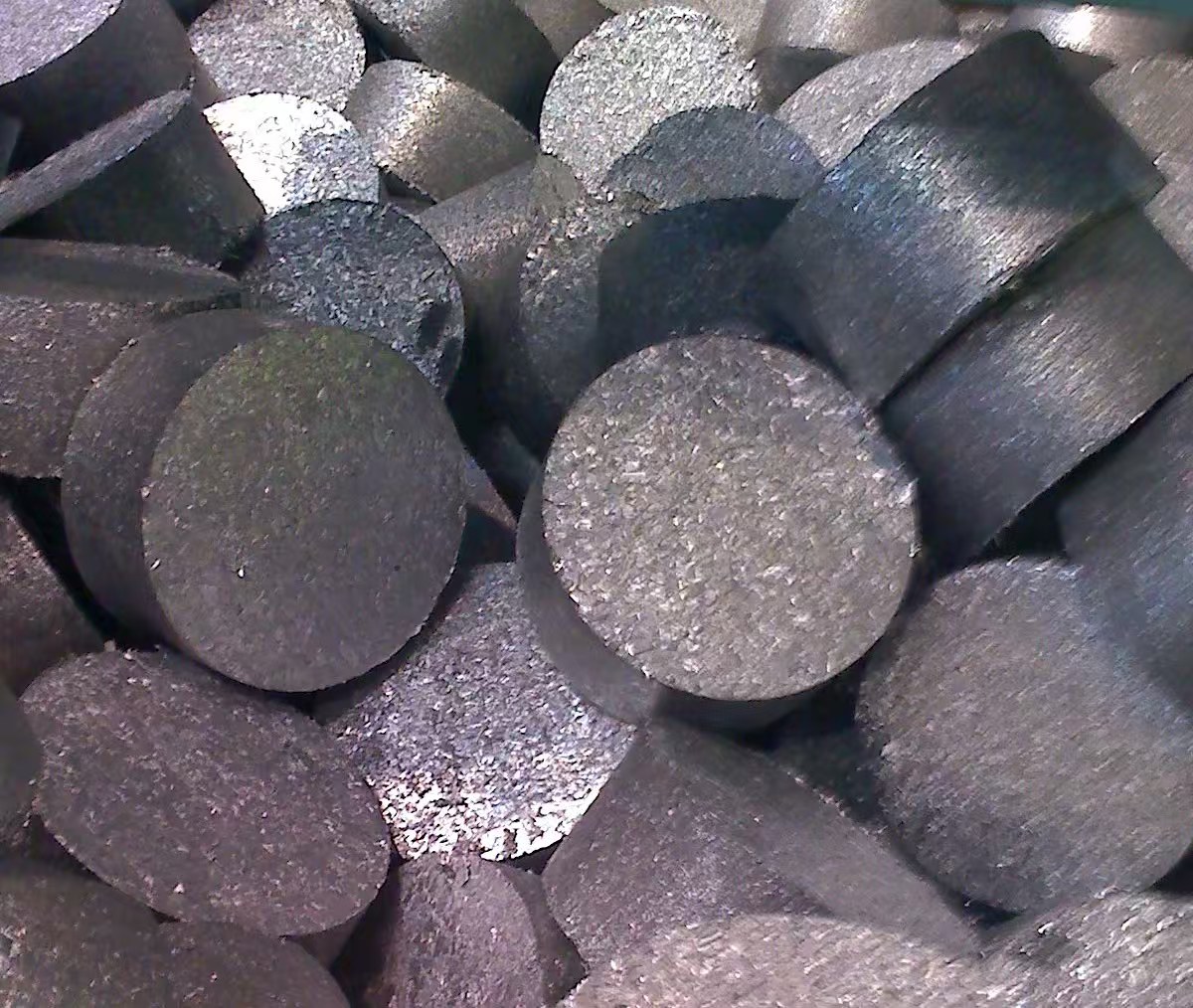

Specifically for metal chips (iron, copper, etc.). High-pressure cold pressing turns loose chips into high-density briquettes for easy melting and cutting fluid recovery.
专门针对金属切削屑、铁屑、铜屑等轻薄碎屑，通过高压冷压成型，将其压制成高密度饼块，便于回收熔炼，同时可回收切削液。
Description
| 型号 Model |
HC83-3150 | HC83-3600 | HC83-5000 | HC83-6300 | HC83-10000 | HC83-12000 | HC83-16000 |
| 公称压力 Pressure (kN/Ton) |
3150/315 | 3600/360 | 5000/500 | 6300/630 | 10000/1000 | 12000/1200 | 16000/1600 |
| 饼块尺寸 Bale Size (mm) |
Φ90-Φ110 X(20-80) |
Φ90-Φ110 X(80-120) |
Φ110-Φ140 X(80-120) |
Φ130-Φ180 X(80-120) |
Φ250-Φ300 X(200-300) |
Φ280-Φ340 X(200-350) |
Φ280-Φ340 X(200-350) |
| 密度 Density (T/m²) |
5.2 | 5.2 | 5.2 | ≥5.2 | 5.0 | 5.0 | 5.0 |
| 块重 Weight (kg) |
3.5-4 | 6-10 | 6-10 | 8-15 | 25-60 | 40-80 | 60-100 |
| 生产率 Rate (pcs/min) |
4-5 | 4-5 | 4 | 4 | 3-4 | 3-4 | 3 |
| 班产量 Output (T/shift) |
8-10 | 10-15 | 13-18 | 15-22 | 40-55 | 45-65 | 60-80 |
| 电器功率 Power (kW) |
30 | 30 | 45 | 30X2 | 45X3 | 55X3 | 55X4 |
| 备注 Remarks |
PLC Auto | PLC Auto | PLC Auto | PLC Auto | PLC Auto | PLC Auto | PLC Auto |
