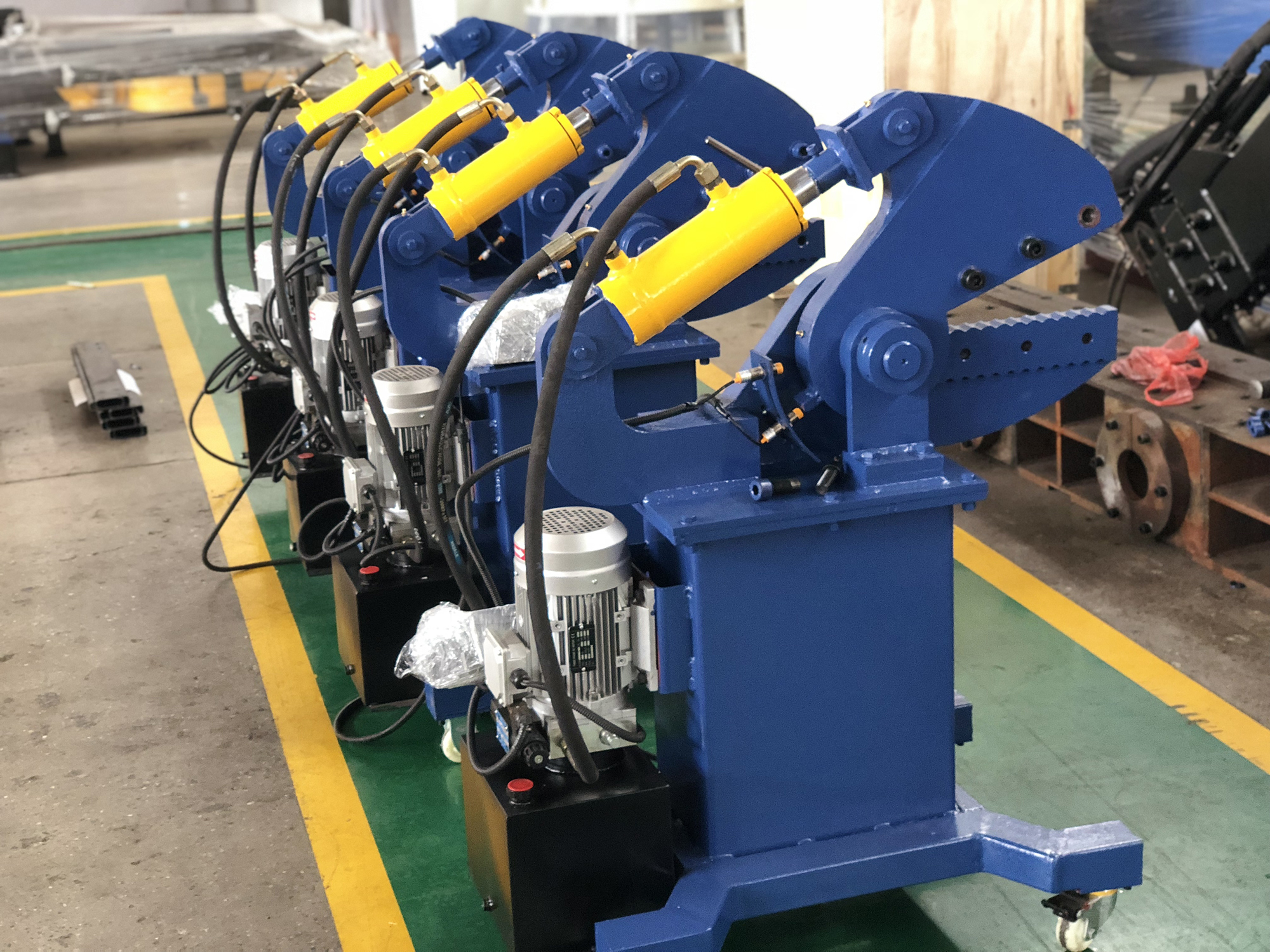

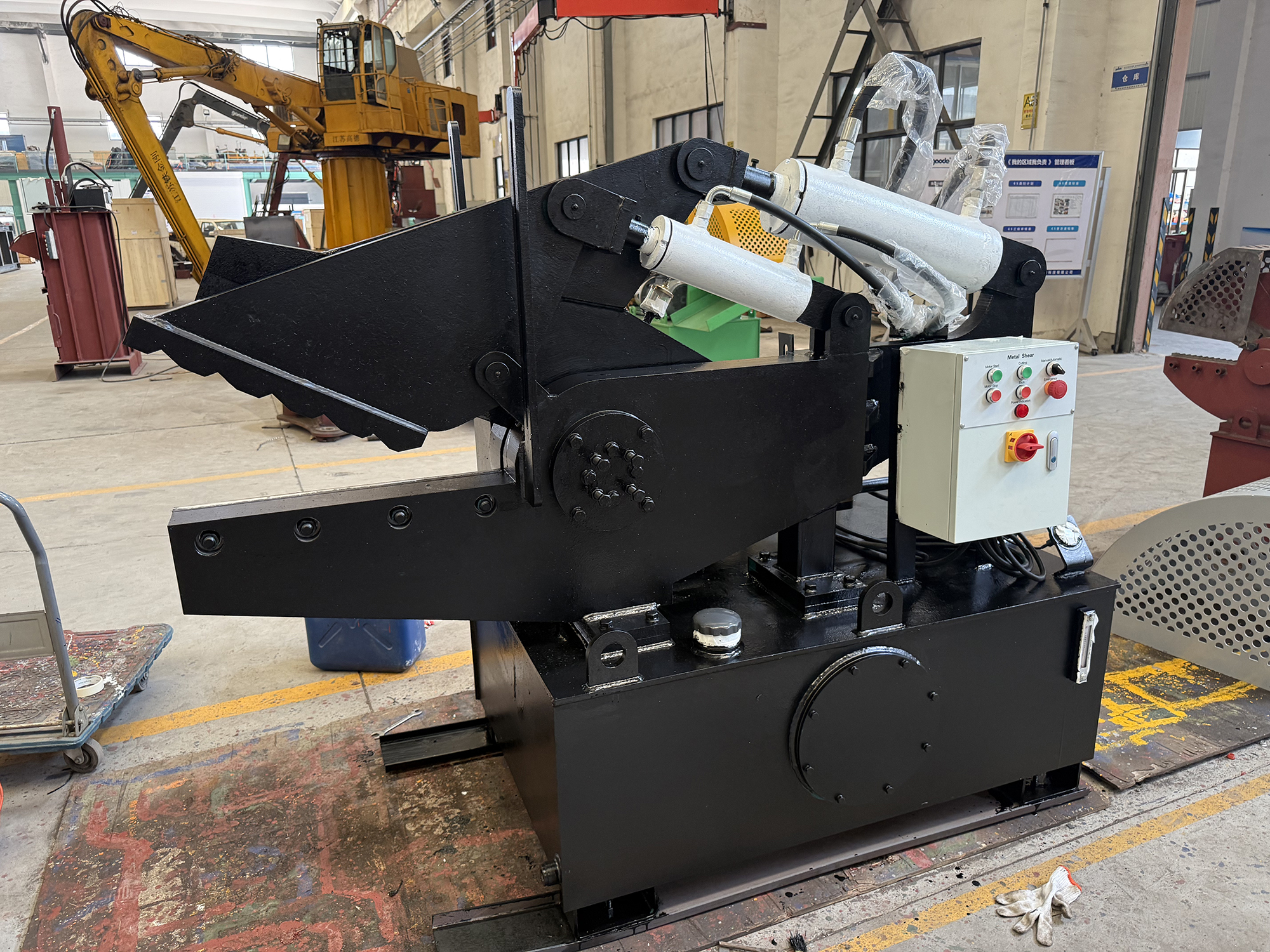

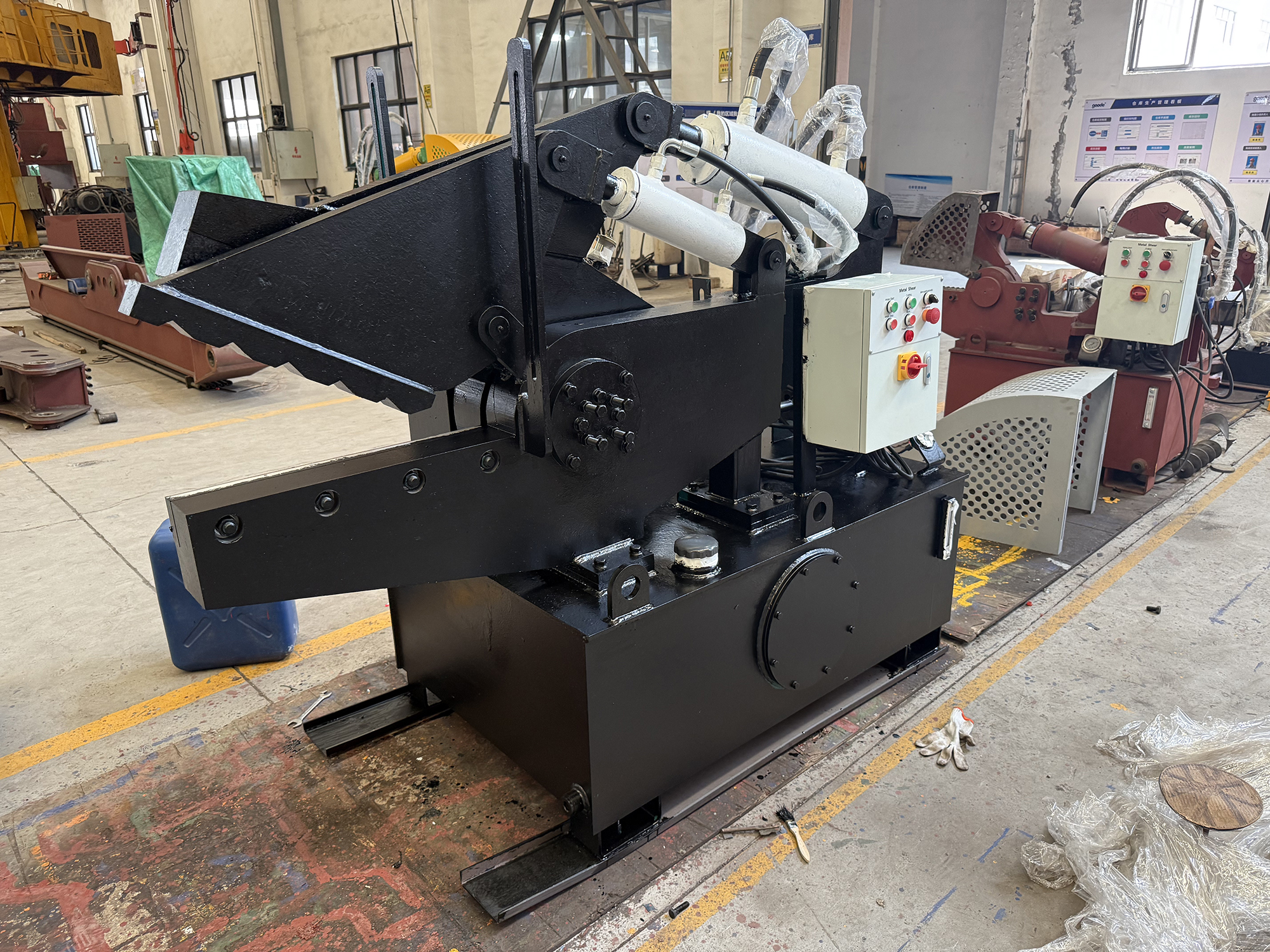

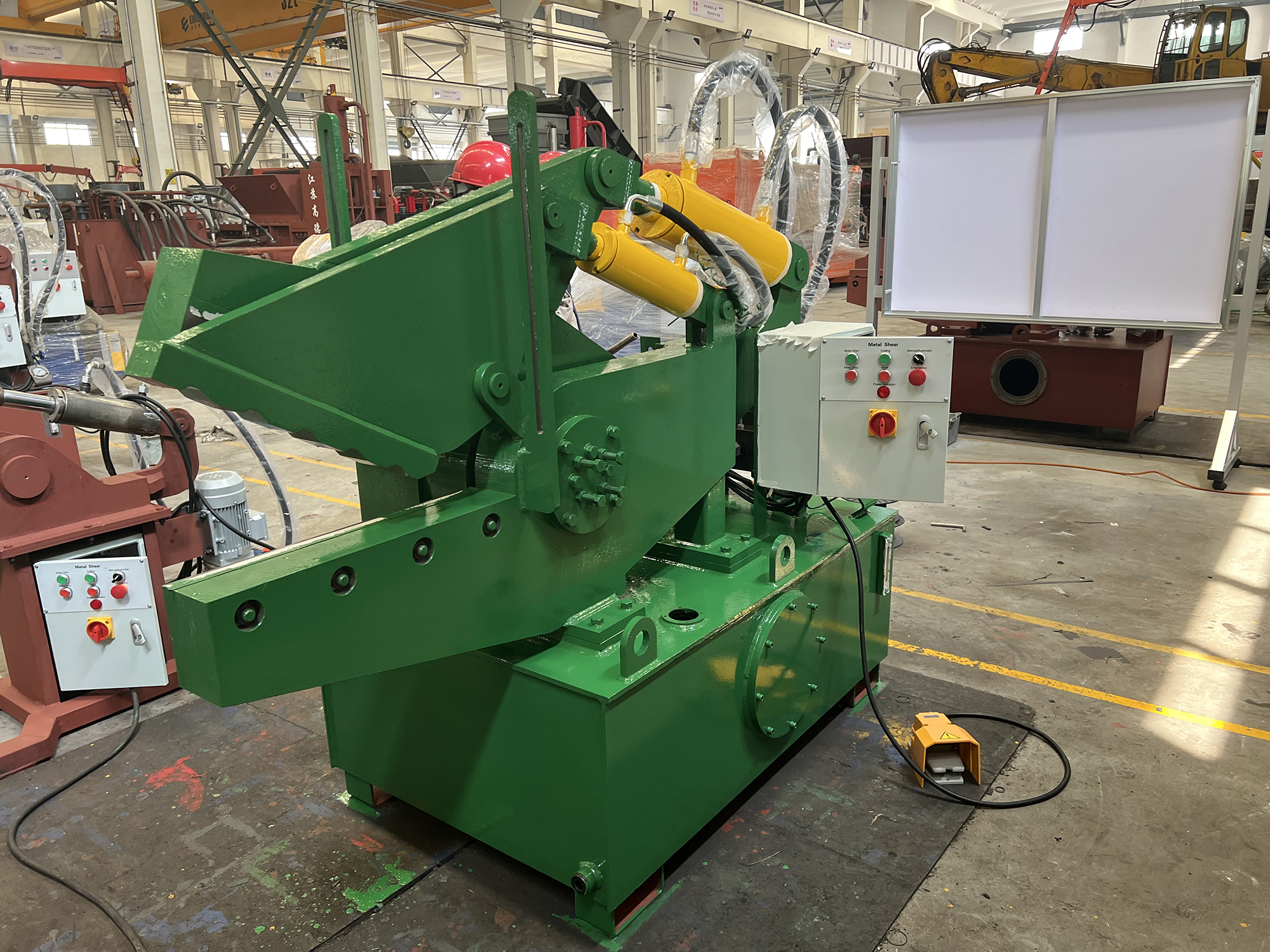

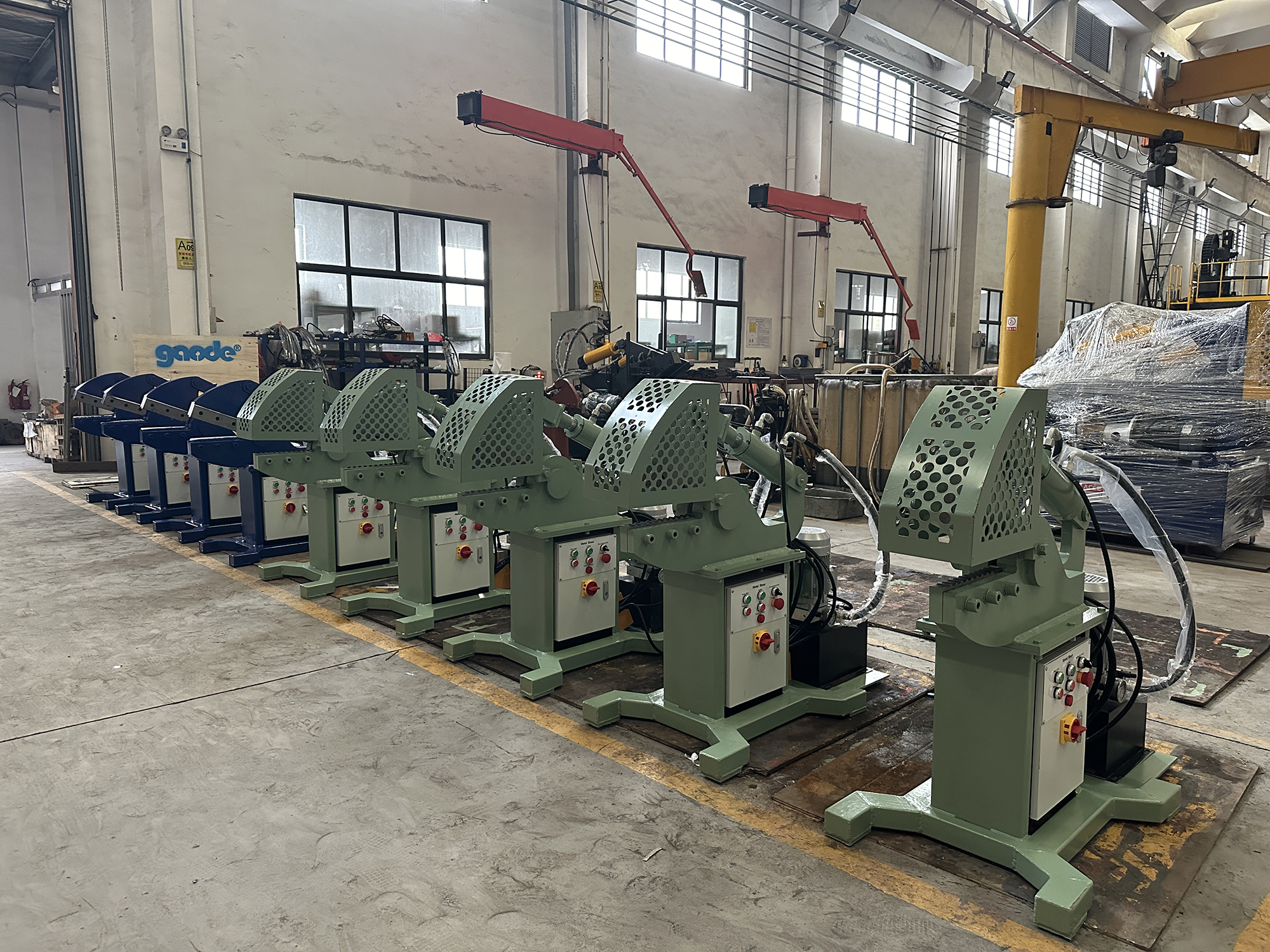

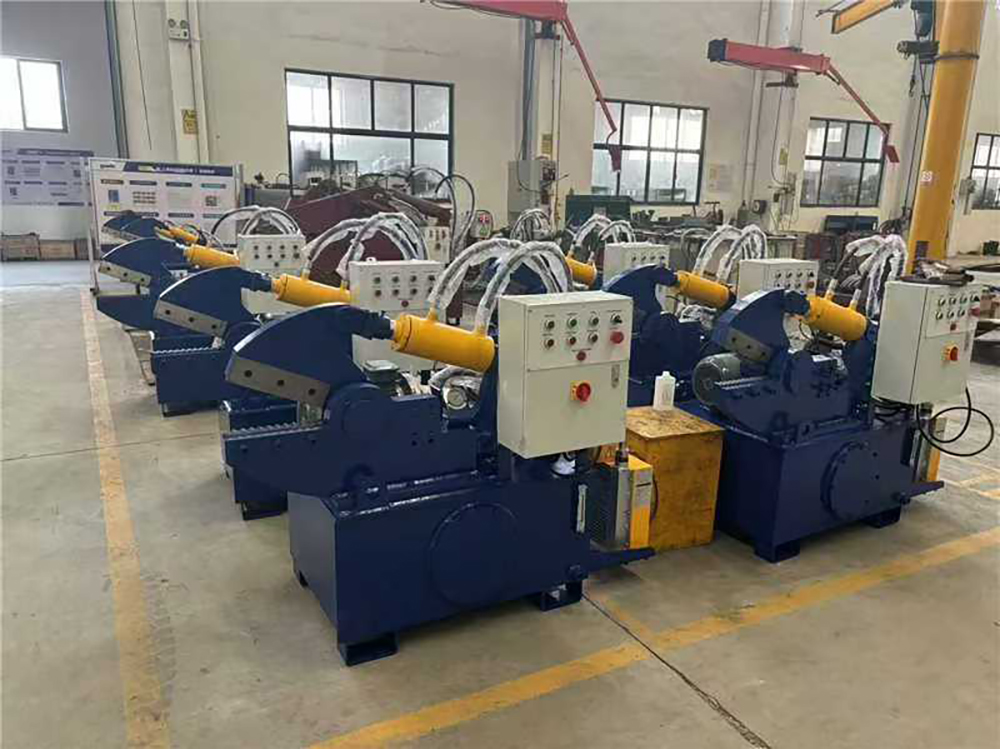

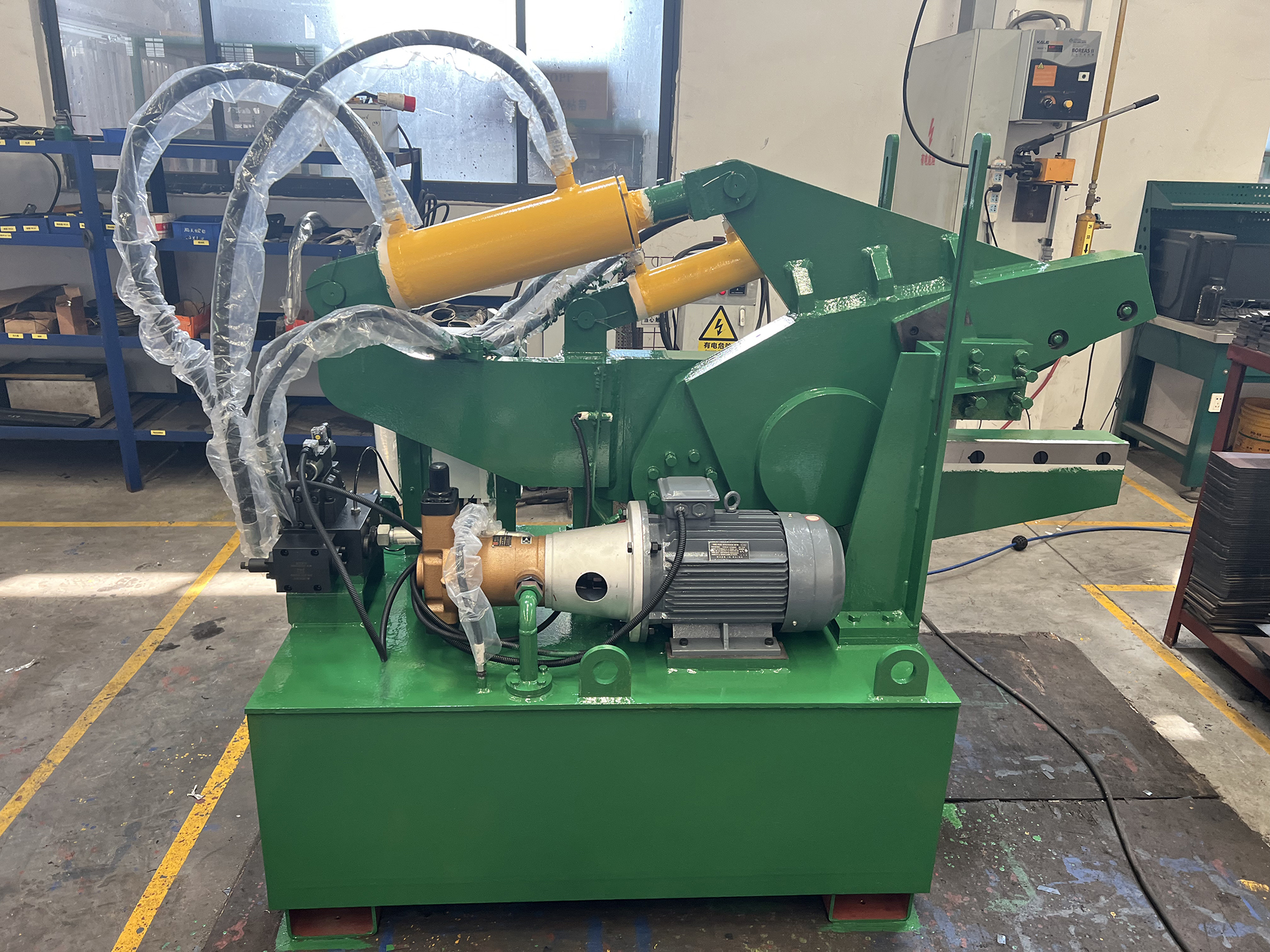

Integrated Shears 一体式剪切机
Highly integrates the hydraulic station, oil tank, and machine body. Compact and easy to move; “plug-and-play” after power connection. Ideal for sites with limited space.
将液压站、油箱与机身高度集成，结构紧凑，移动方便。无需复杂的现场安装，通电即可使用，适合场地有限或需要灵活转场的回收站点。
Description
| 型号 Model |
最大剪力 (kN) |
最大压料力 (kN) |
刀口长度 (mm) |
最大张口 (mm) |
每分钟剪切次数 (times/min) |
主要切割材料尺寸 (mm) |
总功率 (kW) |
| HC43-60 | 6 | / | 300 | 160 | 10 | Φ15 (Non-metal) | 3 |
| HC43-250 | 25 | / | 300 | 150 | 10 | Φ25 (Non-metal) | 5.5 |
| HC43-630 | 63 | 16 | 600 | 280 | 9-16 | 30*30 Φ35 | 7.5 |
| HC43-1000 | 100 | 16 | 600 | 280 | 9-16 | 40*40 Φ45 | 11 |
| HC43-1200 | 120 | 20 | 600 | 280 | 9-16 | 45*45 Φ50 | 15 |
| HC43-1600 | 160 | 25 | 700 | 320 | 9-16 | 55*55 Φ63 | 18.5 |
| HC43-2000 | 200 | 25 | 800 | 380 | 9-16 | 65*65 Φ75 | 22 |
| HC43-2500 | 250 | 26 | 1000 | 480 | 9-16 | 70*70 Φ80 | 30 |
| HC43-3150 | 315 | 42 | 1200 | 520 | 8-16 | 80*80 Φ90 | 37 |
| HC43-4000 | 400 | 42 | 1500 | 700 | 8-16 | 90*90 Φ100 | 44 |
| HC43-5000 | 500 | 42 | 1800 | 900 | 8-16 | 100*100 Φ110 | 44 |
